The Square Four Motorcycle Engine Was Weird And Awesome

Pioneered by Ariel and used by a few other brands, it was wonderfully balanced and sounded great. How come it's not in use today?

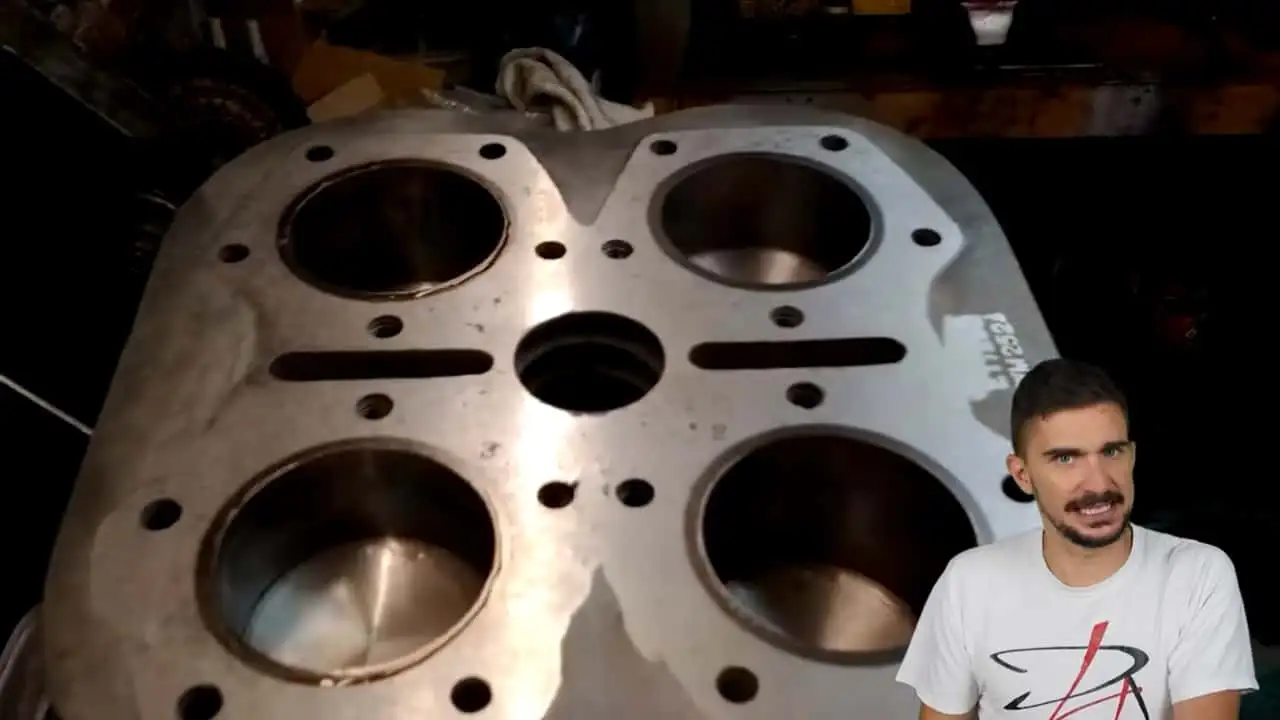

Square Four Engine Screenshot

Photo by: YouTube

Christopher Smith

By: Christopher Smith

May 17, 2025 at 2:00pm ET

Add Motor1.com as a preferred source in Google

Comment

Did you know that a square four engine used to be a thing? In fact, early designs date back nearly 100 years to a man named Edward Turner. He was a motorcycle designer in the UK who penned up a compact engine that essentially fused two small twin cylinders into a single four-pot. He sold the design to a company called Ariel Motors, and thus the Ariel Square Four was born.

One doesn't simply stick a couple of inline twins together for a four-banger. As this video from the YouTube channel Driving 4 Answers demonstrates, this engine is truly a square shape with the cylinders pointing straight down to the crankshafts. Yes, that's crankshafts—the design uses two counter-rotating crankshafts connected with geared flywheels. The cranks trail each other by 180 degrees, and the pistons are diagonally matched. This results in a firing order identical to an inline-four.

Without getting too technical, this all leads to an engine that's inherently well-balanced and smooth-running. Based on the video, it doesn't sound bad either. And the square design makes it supremely compact, essentially taking up the same space normally occupied by a V-twin or even a big single-cylinder mill.

The square four engine wasn't just a flash in the pan. Ariel Motors built the Square Four motorcycle for nearly 30 years, and square four engines were also used by a few other motorcycle manufacturers. It made good low-end power, but it was an expensive engine for the time, and it suffered from overheating issues.

What do you think?

View

Comments

There was also precious little room to have a thriving intake system to feed the engine, which was fine as long as the powerband stayed low in the rev range. But as motorcycle technology evolved to small, high-RPM engines, the low-speed square four just couldn't keep up. Aerial ended production of the Square Four in 1959.

The video notes that technology has evolved to the point where a square four could thrive. But with the world slowly moving towards electric power, this is likely an engine design that will exist only in the history books.
