The Three Types Of Automatic Transmissions—And How They Actually Work

From torque converters to dual-clutch and CVTs, modern automatics take very different paths to the same job.

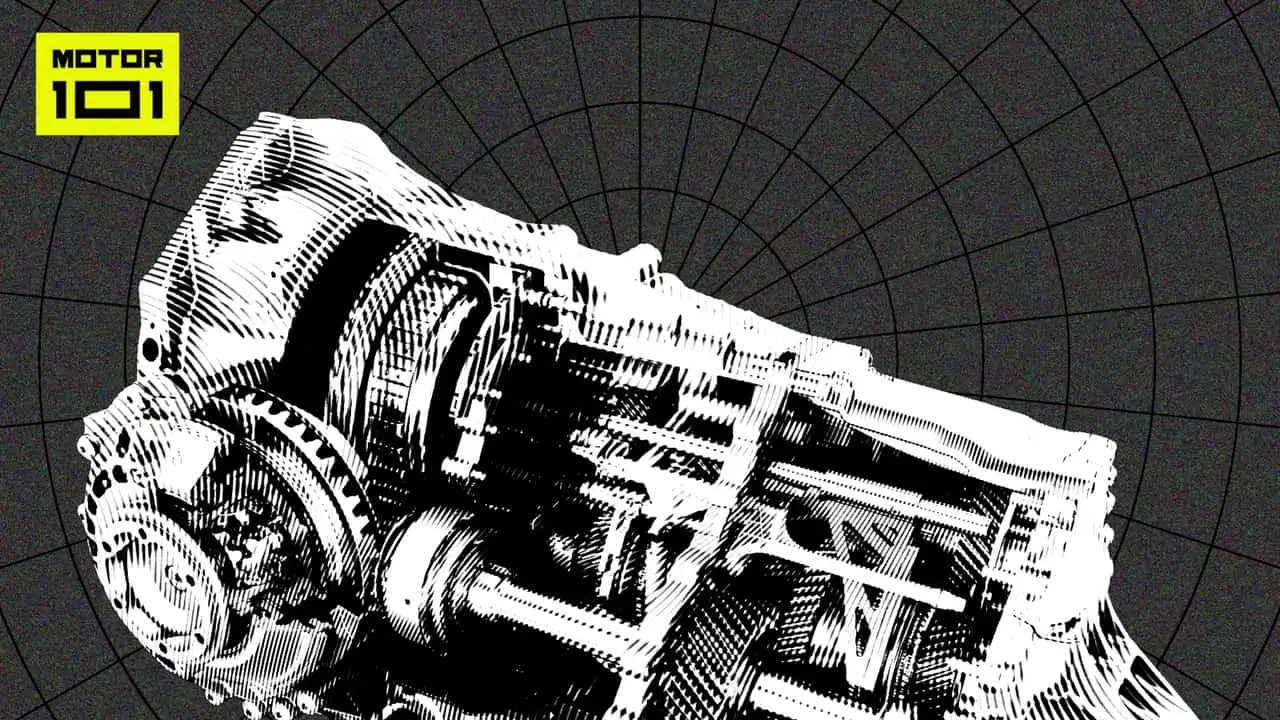

Types Of Transmissions Explainer

Photo by: Jeff Perez / Motor1

Chris Tsui

By: Chris Tsui

Jun 11, at 12:00pm ET

Add Motor1.com as a preferred source in Google

Comment

Despite its ubiquity, the automatic transmission is one of the most mechanically complex parts of the modern automobile. Transmissions allow your gas-powered car to operate efficiently over a wide range of speeds. Ever notice how you can both cruise on the highway at 80 mph and putt around town at 30 without your engine screaming its head off during the former?

A transmission with multiple gears is what makes that possible. The enthusiast-favorite manual transmission supplies you with a clutch pedal and a gear selector that lets the driver do this, well, manually, but the vast majority of cars today are equipped with automatic transmissions.

There are three main types of automatic transmissions: dual-clutch (DCT), continuously variable (CVT), and the default kind that doesn’t typically come with a specific label—most just call them automatic transmissions. What are the key differences? Motor101 is here to explain.

The Traditional Automatic (Torque Converter)

Torque-Converter Automatic Transmission

Torque-Converter Automatic Transmission

Photo by: ZF

This is the classic "automatic" most people think of—sometimes jokingly called a "slushbox," though there’s a lot more happening inside than that nickname suggests.

At its core is the torque converter, a fluid coupling between the engine and transmission. Instead of a direct mechanical connection, engine power is transferred through transmission fluid that spins and multiplies torque.

Inside, a pump (impeller) flings fluid into a turbine, which then drives the transmission. From there, a planetary gearset and hydraulic clutch packs handle gear changes automatically.

Modern versions also include a lock-up clutch that removes slippage at cruising speeds for better efficiency.

The big advantage? Smoothness and creep control. You can sit at a stoplight in gear without stalling and ease forward without wearing out a clutch.

The Dual-Clutch Transmission (DCT)

Dual-Clutch Transmission

Dual-Clutch Transmission

Photo by: Porsche

A dual-clutch transmission is basically a manual gearbox that shifts itself—and it does it fast.

Instead of one clutch, it uses two:

One handles odd-numbered gears
The other handles even-numbered gears

While one gear is engaged, the next is already pre-selected. That means shifts are just a swap between clutches—no waiting, no hunting.

The result is extremely quick, crisp gear changes that make DCTs popular in performance cars like Hyundai N models, Volkswagen hot hatches, and Porsche's PDK-equipped vehicles.

The tradeoff is low-speed behavior. Because clutches are actively engaging, creeping in traffic can feel less smooth than a traditional automatic, especially in earlier designs.

The CVT (Continuously Variable Transmission)

Continuously Variable Transmission

Continuously Variable Transmission

Photo by: Nissan

A CVT takes a completely different approach: it doesn’t really use gears at all.

Instead, it relies on a system of two variable-diameter pulleys connected by a belt or chain. As the pulley sizes change, the "gear ratio" changes continuously—creating an effectively infinite number of ratios.

That means the engine can stay in its most efficient RPM range while the car accelerates smoothly and seamlessly.

In practice, this delivers excellent fuel economy and very smooth acceleration—but also a very different driving feel. Instead of distinct shifts, the engine may hold a steady RPM while speed builds.

Because that sensation felt unusual to drivers used to traditional gear changes, many modern CVTs are programmed to simulate “fake” shift points.

They’re common in commuter cars and hybrids where efficiency matters more than engagement.

The Bottom Line

All three transmissions do the same job—getting power from the engine to the wheels—but they approach it in very different ways.

What do you think?

View

Comments

One prioritizes comfort, one prioritizes performance, and one prioritizes efficiency.

And depending on what you drive, you’re already experiencing one of them every time you hit the road.

FAQs

What are the main types of automatic transmissions?

There are three main types of automatic transmissions: traditional torque converter automatics, dual-clutch transmissions (DCTs), and continuously variable transmissions (CVTs). Each uses a different system to manage gear ratios and deliver power to the wheels.

How does a torque converter automatic transmission work?

A torque converter automatic uses fluid to transfer power from the engine to the transmission. Inside, transmission fluid is spun by a pump, which drives a turbine connected to a planetary gearset that changes gears automatically.

What makes a dual-clutch transmission (DCT) different from a regular automatic?

A DCT uses two separate clutches—one for odd gears and one for even gears. This allows the next gear to be pre-selected, enabling very fast and efficient shifts compared to a traditional automatic.

Why do CVT transmissions feel different when driving?

CVTs don’t use fixed gears. Instead, they use variable pulleys and a belt system to provide an infinite range of gear ratios. This often results in smooth acceleration without traditional shift points, which can feel unusual.

Which type of automatic transmission is best?

There’s no single “best” type. Torque converters are known for smoothness and comfort, DCTs for performance and fast shifting, and CVTs for efficiency and fuel economy. The best choice depends on the driver’s priorities.
